Product_Digital Microscope

Display high quality images in real time

The ECLIPSE Ui’s image quality is backed by Nikon's renowned imaging technology — clear color reproducibility without negative influence from ambient light. Furthermore, the elimination of conventional eyepieces greatly reduces operator eye fatigue allowing the user to work effortlessly for longer periods of time.

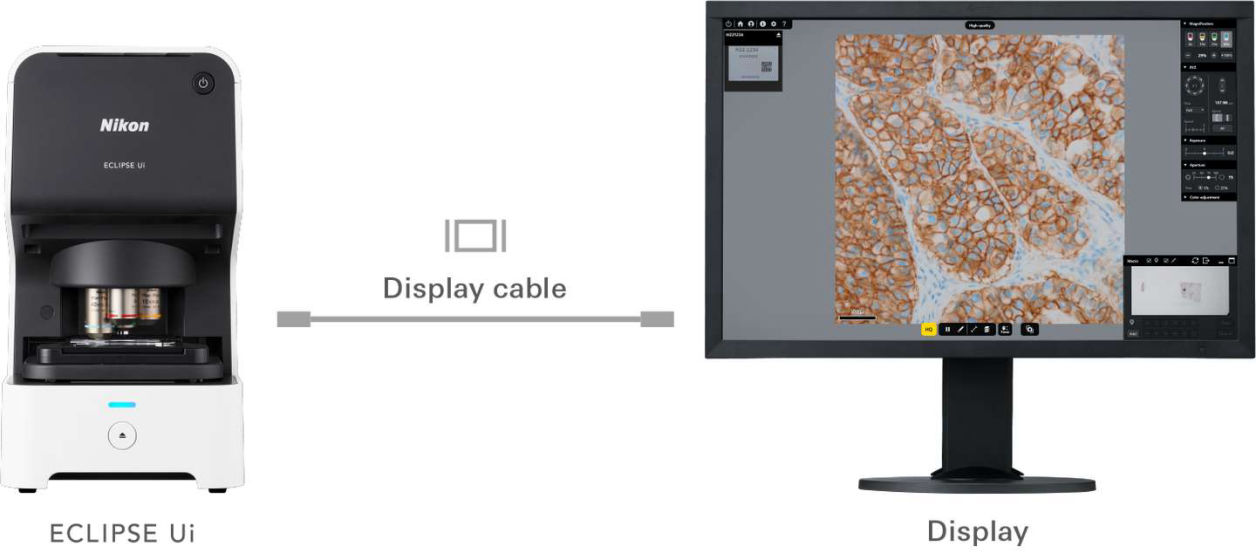

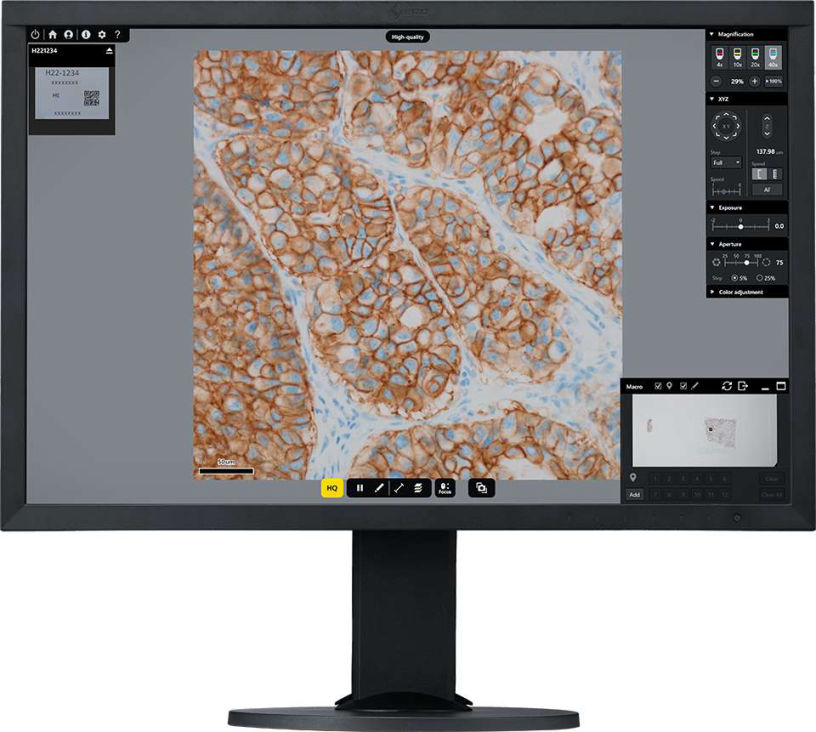

Images on the monitor screen for easy observation.

The internal PC provides all the necessary functions and applications.

Fast imaging for quicker workflow

The ECLIPSE Ui is operational in 2.5 seconds after loading a sample providing the user an immediate viewable image. Digital sample images can be observed live. Furthermore, magnification changes and X-Y movements can be quickly adjusted. It is also equipped with a macro-imaging function and other sample-oriented applications.

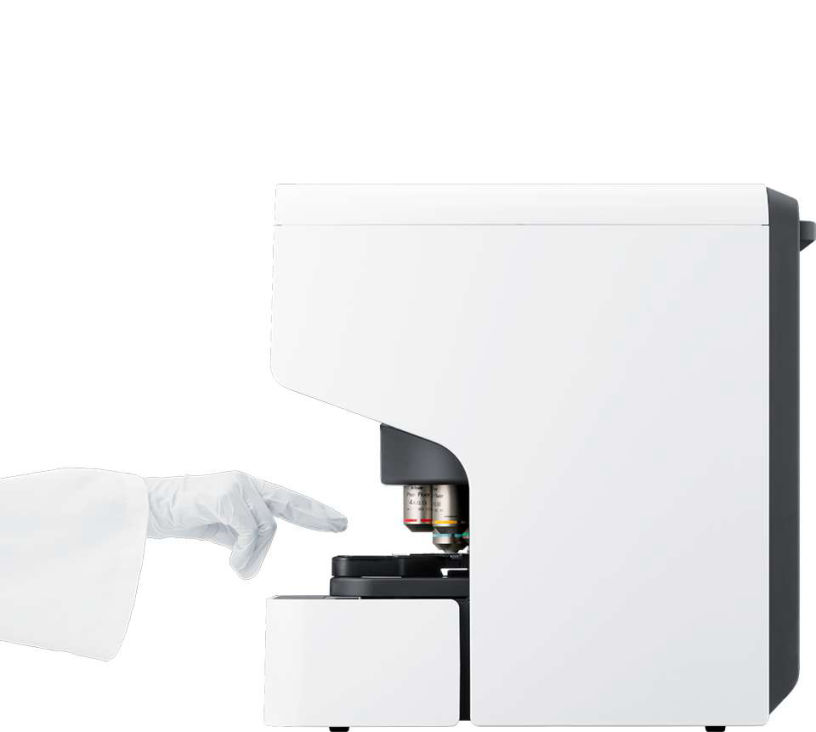

A prepared slide can be placed on the unit with only one hand for quick and efficient slide exchange.

Samples are loaded at the touch of a button and appear on the display monitor in 2.5 seconds.

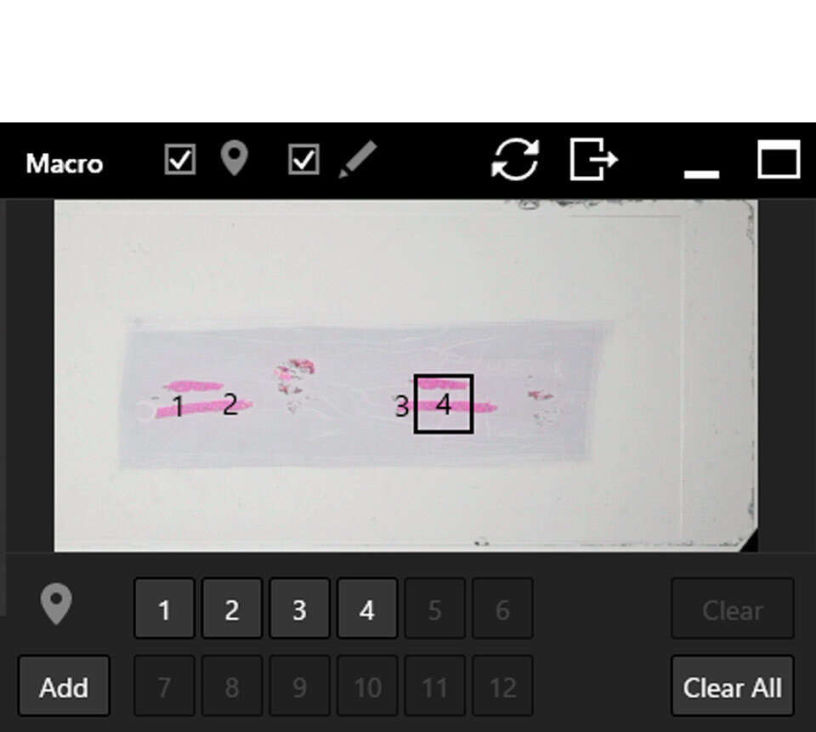

A sample is captured as a macro-image, thereby allowing the user to quickly identify the region of interest to be observed. That site can also be selected and preset so that it can be recalled with just one click. The macro-image displayed may also be saved as required.

Equipped with the various support functions.

Z-stack function*
The Z-stack function enables the observation and recording of samples that are thick, undulating or disperse in the Z-axis.

* Not useable for diagnostic purposes.|
Stepwise transfer
For convenient successive observation, the stage can be shifted at a constant rate utilizing a step-by-step function that delivers less afterimage. Six speed settings can be preset for customized scrolling.

Functions to support multiple use cases and applications

The ECLIPSE Ui system is equipped with three modes: routine specimen observation, research/education, and data sharing. Users can easily select their preferred imaging quality and speed.

* Not for use in diagnostic procedures.

In this mode, cytoscreening is supported. Sample images displayed live on the monitor screen can be used for routine pathological image observation and successive observation. Captured images can be transferred to other pathological systems for later viewing.

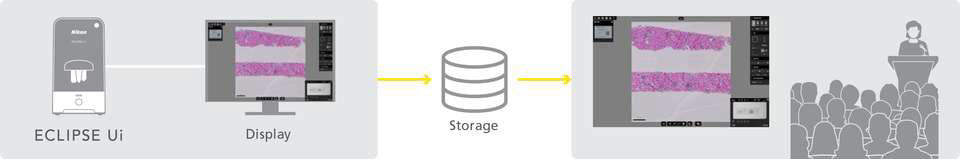

Data (sample images, observation spots, etc.) to share or discuss are saved in an external storage*2. This data can be utilized for relevant studies and education.

*1: Not for use in diagnostic procedures.
*2: Separately sold.

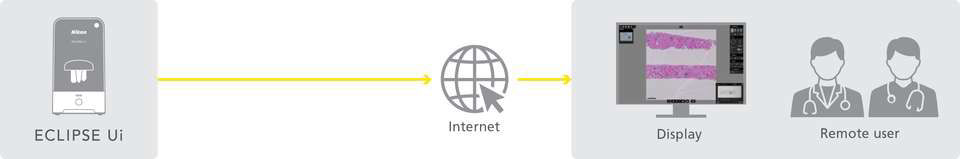

*3: Separate contract must be concluded for using the Remote mode. For communication environment, contact us.

Intelligent Acquisition System

With Nikon microscope and software NIS-Elements, our high content imaging streamlines high-speed imaging and simple operations. Nikon software provides a dedicated interface for high content acquisition and analysis routines.

Without the need to adjust the focusing method, wavelengths, filters, and camera settings, it is easier to process alongside your research quickly and effortlessly.

Learn more

Applications

High Content Imaging

A study of living cells using microscopy to obtain a better understanding of biological function through the study of cellular dynamics.

Learn More >

Fluorescence

Fluorescence itself is a form of luminescence that results from matter emitting light of a certain wavelength after absorbing electromagnetic radiation. Fluorescence Imaging help visualize biological processes taking place in a living organism.

Learn More >

Neurobiology / Optogenetics

Is the study of the nervous system. The scope of neuroscience has broadened over time to include different approaches, such as optogenetics, a biological technique to control the activity of neurons or other cell types with light. This is achieved by the expression of light-sensitive ion channels, pumps, or enzymes specifically in the target cells.

Learn More >

Nikon ECLIPSE Ui

Digital Imaging Microscope

A Real Solution for Digital Pathology

Key Features

Display high quality images in real time

Fast imaging for quicker workflow

Functions to support multiple use cases and applications

Display high quality images in real time

Fast imaging for quicker workflow

A prepared slide can be placed on the unit with only one hand for quick and efficient slide exchange.

Samples are loaded at the touch of a button and appear on the display monitor in 2.5 seconds.

A sample is captured as a macro-image, thereby allowing the user to quickly identify the region of interest to be observed. That site can also be selected and preset so that it can be recalled with just one click. The macro-image displayed may also be saved as required.

Equipped with the various support functions.

Functions to support multiple use cases and applications

The ECLIPSE Ui system is equipped with three modes: routine specimen observation, research/education, and data sharing. Users can easily select their preferred imaging quality and speed.

* Not for use in diagnostic procedures.
